# Domains

Follow, trigger, pause and resume the daily collection of Microsoft Fabric organizational domains and check the Service Principal's permission.

The **Domains** collection brings the **organizational domains** configured in Microsoft Fabric: name, description, parent domain (hierarchy) and how many workspaces are associated with each one. The list and the tree of domains are in Governance; this screen shows the collection history and lets you trigger it, pause it and check whether the Service Principal has the required permission.

**How to access:** *Mapping › Inventory › Domains* (page title: **Domains**). Only **Administrators** can access the screen and the actions.

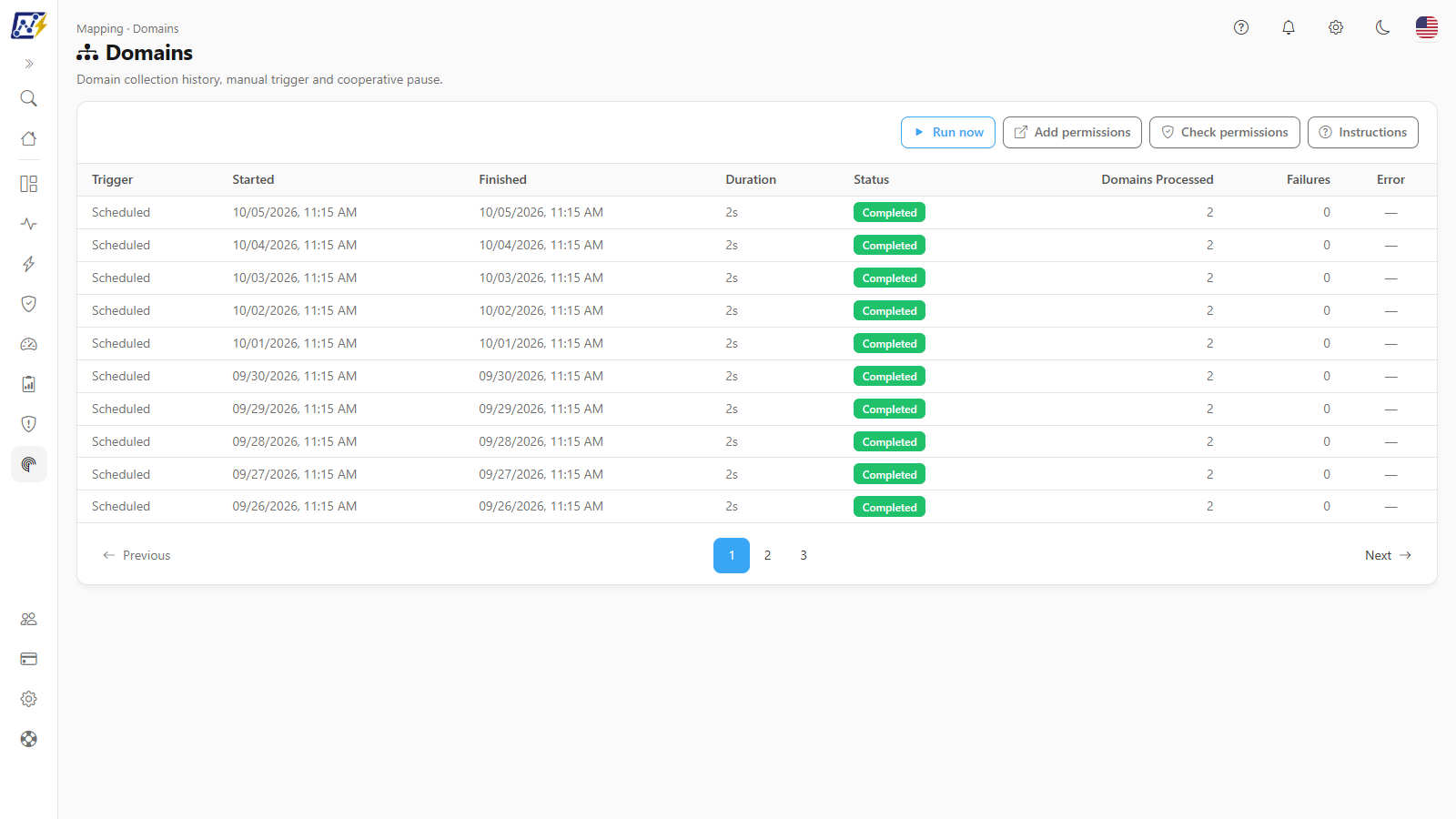

<figure><picture><source srcset="/files/yoKe7C4dFRlbMaCXZxWn" media="(prefers-color-scheme: dark)"><img src="https://3938213054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH2bFRBmIfyK3kwVKbldl%2Fuploads%2Fgit-blob-46a0c9e2d551628807a8c1938d58b950d0658785%2Fpm-mapeamento-dominios-en.png?alt=media" alt="Domains screen with the collection and permission buttons and the run history"></picture><figcaption><p>Domains</p></figcaption></figure>

## What it is for

* Keep the list of domains used in Governance up to date.
* Confirm whether the Fabric Admin API permission is correct for the Service Principal.
* Collect the domains right away, after creating or reorganizing domains in Fabric.

## Features

The screen is a single card with two action bars (collection and permissions) and the run history. The features are: **Run now** / **Resume**, **Pause**, collection state badges, **Add permissions**, **Check permissions**, **Instructions**, run history and **View failures**.

<figure><picture><source srcset="/files/N4acxEru7tYr0WCeQEru" media="(prefers-color-scheme: dark)"><img src="https://3938213054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH2bFRBmIfyK3kwVKbldl%2Fuploads%2Fgit-blob-774ee0888b5b425c360bbd60bb478d6cf9481544%2Fpm-mapeamento-scan-dominios-acoes-en.png?alt=media" alt="Domains screen action bar with Run now, Add permissions, Check permissions and Instructions"></picture><figcaption><p>Collection and permission action bars</p></figcaption></figure>

### Run now / Resume

**What it is:** a button that triggers a manual collection of the domains. When there is a **Paused** collection, the same button is renamed **Resume** and continues the run from where it stopped.

**What it is for:** reflect right away, in [Governance › Tenant › Domains](/en/power-monitor/governanca/tenant/dominios.md), domains you have just created or reorganized in Fabric, without waiting for the daily collection.

**How to use:**

1. Click **Run now**. There is no confirmation modal; the button shows **Running…** while it sends the request.
2. The message **Domain collection queued. The history updates when it starts.** confirms it; if a collection is already running, **A domain collection is already running for this organization.** appears. While the collection service has not picked up the run, the button shows **Queued** and the card says *Run queued, waiting to start…*; then the button changes to **In progress** and the bar shows the processed items (for example, *12 of 40*) and the estimated time left (*\~3 min left*). The screen tracks the run until it finishes, without reloading.
3. Follow the **Collection in progress** badge and the row in the history until **Completed**.
4. Check the domains in [Governance › Tenant › Domains](/en/power-monitor/governanca/tenant/dominios.md).

To resume a paused collection, click **Resume** (the button shows **Resuming…**). The message **Domain collection resumed successfully.** confirms it.

**How it works / rules:**

* It works even with the automatic run turned off in *Settings › Monitoring › Scans and Collections*.
* There is only one active collection (running or paused) per organization.

### Pause

**What it is:** a button that appears only while a collection is running and asks it to stop.

**What it is for:** temporarily interrupt a long collection (for example, to relieve the Admin API at a critical time) without losing what has already been processed.

**How to use:**

1. During a collection, click **Pause** (the button shows **Pausing…**). The badge **Pause requested: the run stops at the next processed item.** appears.
2. The run changes to **Paused** and the main button becomes **Resume**.
3. Click **Resume** when you want to continue from the point where it stopped.

**How it works / rules:** the pause is cooperative: it respects the domain being processed and only stops at the next one. When resumed, the collection keeps the failures already recorded. A paused collection does not expire.

### Collection state badges

**What it is:** badges at the top of the card that show the current state: **Collection in progress (n)** (blue, with a spinning indicator), **Collection paused** (yellow) and **Pause requested: the run stops at the next processed item.** (gray). During a running collection, an animated progress bar appears above the table.

**What it is for:** know, without opening anything, whether a collection is running, paused or about to pause.

**How to use:** just observe; the screen updates by itself while there is an active collection.

### Add permissions

**What it is:** a button that opens, in a new browser tab, the Tenant settings of the Fabric Admin portal.

**What it is for:** go straight to the place where a Fabric administrator enables the tenant setting required by the collection.

**How to use:** click **Add permissions** and follow the step-by-step in [How to enable the domain collection permission](#how-to-enable-the-domain-collection-permission). You must be signed in with a Fabric administrator account.

### Check permissions

**What it is:** a button that tests, right away, whether the Service Principal can read the domains. It does not save anything and does not start a collection.

**What it is for:** confirm that the tenant setting has been applied, before triggering the collection or after an **Access denied** failure.

<figure><picture><source srcset="/files/PafzZBSM4EQ3zlrXvi1P" media="(prefers-color-scheme: dark)"><img src="https://3938213054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH2bFRBmIfyK3kwVKbldl%2Fuploads%2Fgit-blob-4bb090e65a5c37b2b116d1a761fc793ac0468da7%2Fpm-mapeamento-scan-dominios-verificar-permissoes-en.png?alt=media" alt="Badge with the result of Check permissions next to the permission buttons"></picture><figcaption><p>Result of the permission check</p></figcaption></figure>

**How to use:**

1. Click **Check permissions** (the button shows **Checking…**).
2. Read the badge that appears next to the buttons:

| Result                                      | Meaning                                                                                              |
| ------------------------------------------- | ---------------------------------------------------------------------------------------------------- |
| **Permission OK** (green)                   | The Service Principal reads the domains normally                                                     |
| **Service Principal not configured** (gray) | Missing or invalid credentials                                                                       |
| **Access denied** (red)                     | Fabric refused the access (tenant setting turned off or Service Principal outside the allowed group) |
| **Error checking** (yellow)                 | Network failure or another error; try again                                                          |

**How it works / rules:** if the check cannot be performed, **Could not check permissions right now. Please try again.** appears. After changing the setting in Fabric, wait a few minutes for propagation before checking.

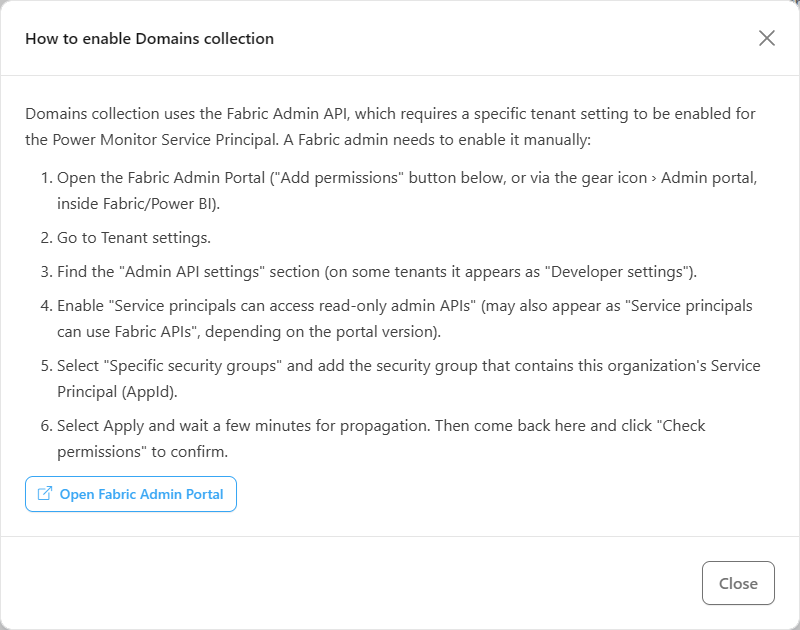

### Instructions

**What it is:** a button that opens the **How to enable Domains collection** modal, with the step-by-step of the tenant setting and the **Open Fabric Admin Portal** button.

**What it is for:** have the configuration script at hand, inside Power Monitor itself, to pass on to the Fabric administrator.

<figure><picture><source srcset="/files/BYUmB9I1XlScGZDUHwPq" media="(prefers-color-scheme: dark)"><img src="https://3938213054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH2bFRBmIfyK3kwVKbldl%2Fuploads%2Fgit-blob-6edcc048a54d5d038bd3b959d8d54f103dbe337b%2Fpm-mapeamento-scan-dominios-modal-instrucoes-en.png?alt=media" alt="How to enable Domains collection modal with the step-by-step"></picture><figcaption><p>Permission instructions</p></figcaption></figure>

**How to use:**

1. Click **Instructions**.
2. Follow the listed steps (the same as in [How to enable the domain collection permission](#how-to-enable-the-domain-collection-permission)).
3. Use **Open Fabric Admin Portal** to go to the portal, or close the modal.

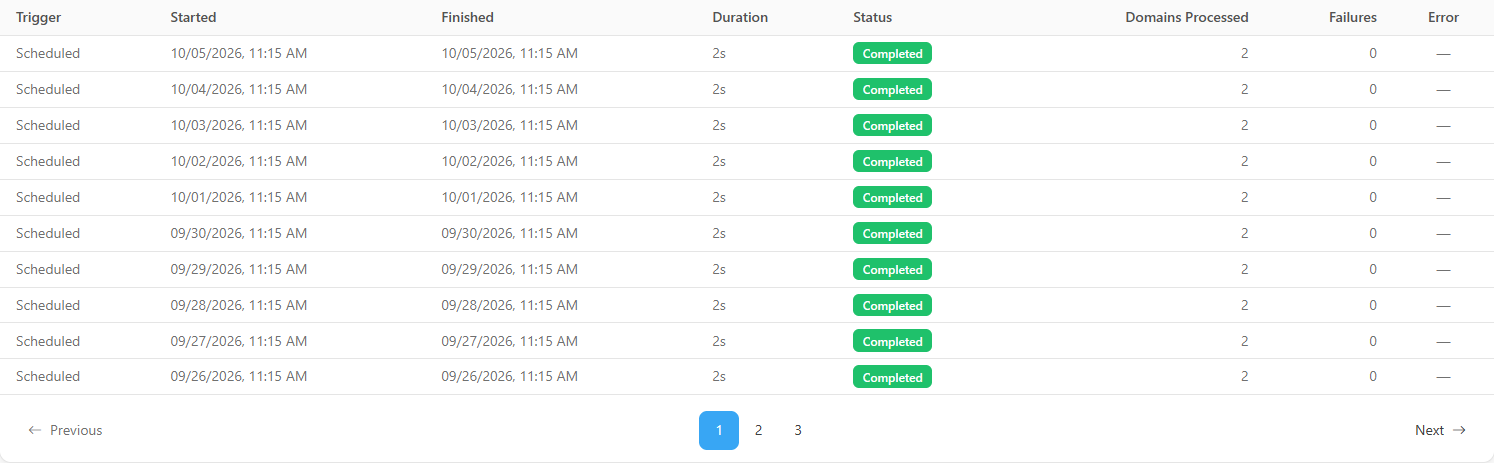

### Run history

**What it is:** a paginated table with the collection runs, from most recent to oldest (10 per page; the **Items per page** selector below the table offers 10, 25, 50 or 100).

**What it is for:** confirm that the daily collection ran, how many domains it processed and whether there were failures or stalls.

<figure><picture><source srcset="/files/ZrFjEv8Hx0eW3zPf4wAe" media="(prefers-color-scheme: dark)"><img src="https://3938213054-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH2bFRBmIfyK3kwVKbldl%2Fuploads%2Fgit-blob-1932f4bbedc3c74b95d4e3211b641607fade1450%2Fpm-mapeamento-dominios-historico-en.png?alt=media" alt="Run history of the domain collection"></picture><figcaption><p>Run history</p></figcaption></figure>

| Column                                    | Content                                                                                                |
| ----------------------------------------- | ------------------------------------------------------------------------------------------------------ |
| **Trigger**                               | **Scheduled** or **Manual** (for manual runs, hover over the person icon to see who triggered it)      |
| **Started** / **Finished** / **Duration** | Run times (no end and duration while it is active)                                                     |
| **Status**                                | **Running** (blue), **Paused** (yellow), **Completed** (green), **Failed** (red), **Stalled** (yellow) |
| **Domains Processed**                     | Number of domains saved                                                                                |
| **Failures**                              | Domains with errors; **View failures** link                                                            |
| **Error**                                 | Icon with the run's general error message (hover over it)                                              |

**How to use:**

1. Locate the run by the **Started** column.
2. For a general error, hover over the icon in the **Error** column.
3. Navigate through the pages with **Previous**, **Next** or the numbers below the table, and use **Items per page** to see more rows.

**How it works / rules:** while there is an active collection, the table is updated automatically every 20 seconds. With no runs, **No run recorded yet** appears.

### View failures

**What it is:** a link in the **Failures** column that opens the **Failures for the {date} run** modal, with the **Item** (domain name and identifier), **Reason** and **Detail** columns.

**What it is for:** find out which domains were not fully processed and why.

**How to use:**

1. Click **View failures** on the run (available when the run finished with failures).
2. Read the **Reason** and **Detail** of each domain.
3. Click **Close**.

**How it works / rules:** if the run did not store the details, **No detail available for this run.** appears. When there are many failures, the end of the list shows **and n more not listed**.

## Rules and behavior

* **Where the data comes from:** Fabric Admin API (list of domains and workspaces of each domain), with the organization's Service Principal.
* **Automatic frequency:** by default, daily at **06:15** (Brasília time, UTC-3), for active organizations with a configured Service Principal. Under *Settings › Monitoring › Scans and Collections*, **Others** group, the **Organizational Domains** card lets you turn off automatic collection and choose the **Frequency**: **Daily**, **Weekly** or **Monthly**. With weekly and monthly, the run happens on a day distributed per organization, and the card shows **Next expected run** and **Last run**. **Run now** is not affected: it works with the toggle off and at any frequency.
* **A per-domain failure does not bring down the collection:** if it is not possible to count the workspaces of a domain, it is saved with 0 workspaces and counted as a failure.
* **Cooperative pause:** the pause respects the item being processed; when resumed, the collection continues from the point where it stopped and keeps the failures already recorded. A paused collection does not expire.
* **Stalled:** a collection with no progress for **10 minutes** is closed as **Stalled** ("Execução interrompida após 10 minutos sem progresso.", that is, run interrupted after 10 minutes without progress).
* **Concurrency:** one active collection (running or paused) per organization.

### Required permission

Tenant setting **Service principals can access read-only admin APIs** (on some tenants it appears as "Service principals can use Fabric APIs"), enabled for a **security group that contains the Service Principal**. Power Monitor never changes this setting automatically: a Fabric administrator must enable it.

### How to enable the domain collection permission

{% stepper %}
{% step %}

### Open the portal

Click **Add permissions** (or, in Fabric, gear icon › **Admin portal**) with a Fabric administrator account.
{% endstep %}

{% step %}

### Locate the setting

Go to **Tenant settings** › **Admin API settings** section (on some tenants, "Developer settings").
{% endstep %}

{% step %}

### Enable it for the Service Principal's group

Enable **Service principals can access read-only admin APIs**, select **Specific security groups** and add the group that contains the organization's Service Principal. Click **Apply**.
{% endstep %}

{% step %}

### Check

Wait a few minutes for propagation, return to Power Monitor and click **Check permissions**. The expected result is **Permission OK**.
{% endstep %}
{% endstepper %}

## Common errors and how to resolve them

| Message / symptom                                                                                                                      | How to resolve                                                                                                     |
| -------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------------------------------ |
| **Access denied** / "Falha ao listar domínios: HTTP 403" (failed to list domains)                                                      | Enable the tenant setting for the Service Principal's group, wait for propagation and click **Check permissions**. |
| **Service Principal not configured** / "Não foi possível adquirir token app-only Fabric" (could not acquire the Fabric app-only token) | Review the Service Principal's App ID and secret.                                                                  |
| **Stalled** status                                                                                                                     | The run stopped making progress. Click **Run now** again.                                                          |
| Domain with **Falha ao contar workspaces do domínio.** (failed to count the domain's workspaces)                                       | A one-off API error; the domain was saved with 0 workspaces. Run the collection again.                             |

## Frequently asked questions

<details>

<summary>Where can I see the list of collected domains?</summary>

In *Governance › Tenant › Domains*, available to all profiles. This screen shows only the collection run.

</details>

<details>

<summary>My tenant does not use domains. Do I need this collection?</summary>

No. The collection finishes with 0 domains processed. If you prefer, turn it off in *Settings › Monitoring › Scans and Collections*.

</details>

## Related pages

* [Governance › Tenant › Domains](/en/power-monitor/governanca/tenant/dominios.md)
* [Governance › Workspaces](/en/power-monitor/governanca/workspaces.md)
* [Settings › Monitoring](/en/power-monitor/configuracoes/monitoramento.md)
* [Mapping](/en/power-monitor/mapeamento.md)


---
