# Capacity Metrics
Follow and trigger the three scans that feed the Capacity Dashboard: capacity list, Capacity Units consumption and daily operations per item.
The Mapping **Capacity Metrics** screen brings together the **three scans** that feed the Capacity Dashboard and the consumption screens: the **capacity list** (read through the Admin API), the **Capacity Units (CU) consumption** per capacity and the **daily operations per item**. The last two are read from the **Microsoft Fabric Capacity Metrics App** installed in your tenant. Here you see the last run of each scan and can trigger any of them right away.
**How to access:** *Mapping › Capacity and cost › Capacity Metrics*. Only **Administrators** can access the screen and the actions.

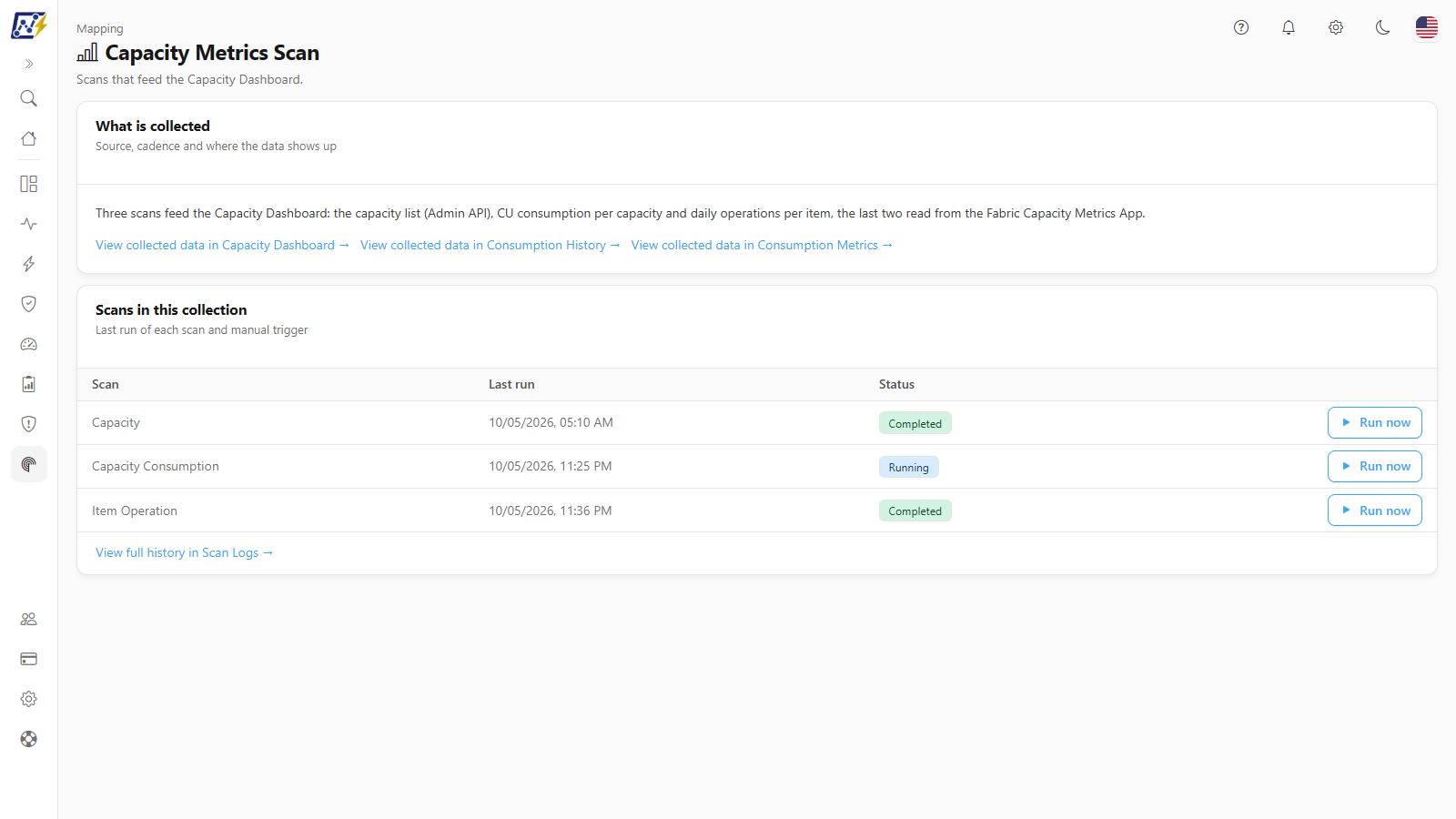

Capacity Metrics
## What it is for
* Confirm that Capacity Units consumption is being collected and that the Capacity Dashboard is up to date.
* Force a collection after configuring the Capacity Metrics Source or turning on monitoring for a capacity.
* Find out which of the three scans failed when the Capacity Dashboard or the Consumption History show outdated data.
## Screen components
The screen has two cards: **What is collected** and **Scans in this collection**.
### What is collected
**What it is:** a card with the description of the three scans and, in the footer, the links **View collected data in Capacity Dashboard →**, **View collected data in Consumption History →** and **View collected data in Consumption Metrics →**.
### Scans in this collection
**What it is:** a table with one row per scan and the columns **Scan**, **Last run**, **Status** and the **Run now** button.

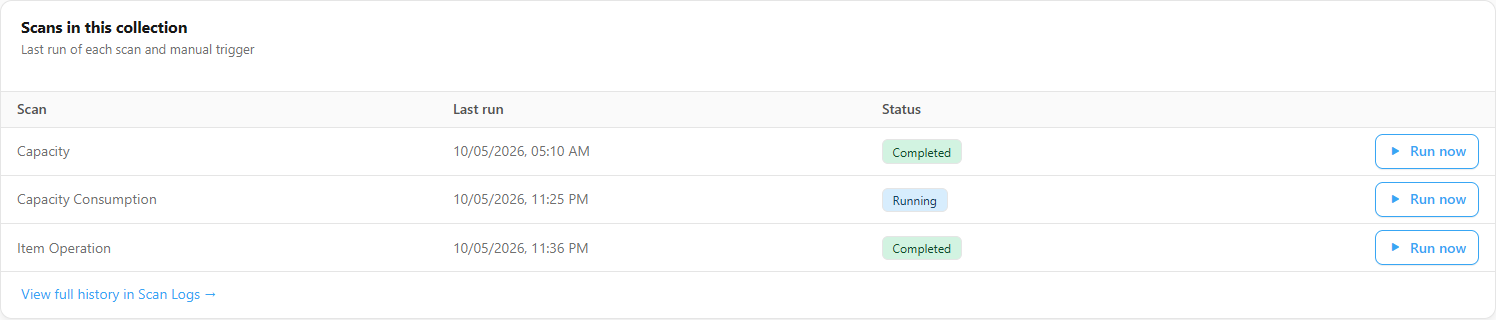

Scans in this collection card
| Scan | What it collects | Source | Automatic frequency |
| ------------------------ | ------------------------------------------------------------------- | -------------------- | ---------------------------------------- |
| **Capacity** | Inventory of capacities (name, SKU, region, state) | Admin API | Once a day, at **00:00** (Brasília time) |
| **Capacity Consumption** | CU consumption of the capacities | Capacity Metrics App | Every 5 minutes |
| **Item Operation** | Daily operations per item (consumption per item, operation and day) | Capacity Metrics App | Every 5 minutes |
The **Status** of each row can be **Running** (blue), **Completed** (green), **Failed** (red) or **Never run** (gray). Each row has its own button, and the scans can run at the same time.
**How to use Run now:**
1. In the row of the desired scan, click **Run now**. There is no confirmation modal.
2. **Scan queued. The status updates by itself when it finishes.** appears and the button shows **Running…** (disabled).
3. When it finishes, Power Monitor notifies you with **Scan completed.** or **The scan finished with a failure. See the details in Scan Logs.**, and the **Last run** of the row is updated.
**Full history:** the **View full history in Scan Logs →** link opens [Scan Logs](/en/power-monitor/mapeamento/logs-de-scans-e-re-execucoes.md) filtered by the three types (**Capacity**, **Capacity Consumption** and **Item Operation**).
### Run history
**What it is:** the **Run history** table, below the scans, with the runs of this screen's scans from the most recent to the oldest, with an items-per-page selector and pagination.
| Column | Content |
| ----------------------------------------- | ------------------------------------------------------------------------------------------------- |
| **Trigger** | **Scheduled** or **Manual** (for manual runs, hover over the person icon to see who triggered it) |
| **Scan** | Which of this screen's scans ran |
| **Started** / **Finished** / **Duration** | Run times; while the run is in progress, **Duration** shows the elapsed time live |
| **Status** | Run status |
| **Items processed** | Number of items handled by the run |
| **Error** | Icon with the run's error message (hover over it) |
**What it is for:** checking the latest runs and the error of a failure without leaving the screen.
{% hint style="info" %}
The **Capacity** scan is the same capacity inventory as the [Capacities](/en/power-monitor/mapeamento/capacidades.md) screen, which also brings the history per run and the changes modal. Use either one to trigger the inventory.
{% endhint %}
## Rules and behavior
* **Capacity Consumption and Item Operation** depend on the **Fabric Capacity Metrics App** and on the **Capacity Metrics Source** configured in *Settings › Monitoring*, besides monitoring turned on in at least one capacity for the automatic collection. Without the source configured, the run ends without collecting anything (no item processed). See [Enable Capacity Monitoring](/en/power-monitor/monitoramento/capacidades/ativar-monitoramento-de-capacidade.md).
* **Frequency:** the **Capacity** scan can have its **Frequency** changed to **Daily**, **Weekly** or **Monthly** and be turned off in *Settings › Monitoring › Scans and Collections* (**Capacity Inventory**). The two Capacity Metrics App scans run every 5 minutes and do not have this option. The **Run now** button is not affected by these settings.
* **Later processing:** the consumption collected here is turned into hourly metrics, baseline and anomalies by the processes followed in [Consumption Metrics](/en/power-monitor/mapeamento/metricas-de-consumo.md).
* **Last run:** comes from the same record as Home, not from the window of days of Scan Logs.
* **How much it consumes:** **Capacity Consumption** and **Item Operation** run DAX queries on the Capacity Metrics App every 5 minutes, the largest CU consumption on the platform. This consumption falls on the capacity that hosts the **app workspace**, not necessarily on the monitored capacity. The footer of the **Scans in this collection** card shows the matching sentence, with an **i** that explains the consumption:
* app on a capacity: *The capacity consumption and item operation scans consume Fabric capacity to update the data.*, and the **i** names the capacity;
* app in a Pro or Premium Per User workspace: no sentence, because the queries consume no capacity;
* app location unknown: *... may consume Fabric capacity, depending on where the Capacity Metrics app is installed.*
Microsoft recommends installing the app in a Pro workspace to avoid throttling. See [Fabric capacity consumption](/en/power-monitor/configuracoes/monitoramento.md#fabric-capacity-consumption).
## Step by step
{% stepper %}
{% step %}
### Open the screen
In *Mapping › Capacity and cost › Capacity Metrics*.
{% endstep %}
{% step %}
### Check the state of the scans
Look at the **Last run** and the **Status** of **Capacity**, **Capacity Consumption** and **Item Operation**.
{% endstep %}
{% step %}
### Trigger the collection
Click **Run now** on the late scan and wait for the status to become **Completed**. If it fails, open **View full history in Scan Logs →**.
{% endstep %}
{% step %}
### Check the data
Open the [Capacity Dashboard](/en/power-monitor/dashboards/dashboard-de-capacidade.md) or the [Consumption History](/en/power-monitor/monitoramento/historico-de-consumo.md).
{% endstep %}
{% endstepper %}
## Frequently asked questions
Capacity Consumption completed, but the dashboard is empty. Why?
Check whether the **Capacity Metrics Source** is **Configured and validated** and whether there are capacities with monitoring turned on in *Settings › Monitoring*. Without the source, the scan ends without processing items. See [Enable Capacity Monitoring](/en/power-monitor/monitoramento/capacidades/ativar-monitoramento-de-capacidade.md).
Why are there scans every 5 minutes but the dashboard is delayed?
The scans read what the Capacity Metrics App already has available: if the app has not updated its data yet, there is no new data to collect. **Run now** only anticipates the reading.
What is the difference between this screen and Consumption Metrics?
This screen collects the raw consumption of the capacities. The [Consumption Metrics](/en/power-monitor/mapeamento/metricas-de-consumo.md) screen follows the processes that turn it into hourly metrics, baseline and anomalies, and has no manual trigger.
